Published: 20th January 2020
This IIT Madras-designed Check Dam will help Palar River to store surplus rainwater
While a conventional weir-type check dam costs around Rs 82 crore and takes up to one year for construction, this project was completed with a funding of Rs 32.5 crore in six months
Indian Institute of Technology Madras Researchers have designed and overseen the construction of a check dam across Palar River that has resulted in the significant increase in storage of surplus rainwater in the river.
The innovative design of IIT Madras Researchers also resulted in a savings of nearly Rs 49.5 crore for this project, which was funded under Corporate Social Responsibility (CSR) activities of the Madras Atomic Power Station (MAPS) at Kalpakkam.
While a conventional weir-type check dam costs around Rs 82 crore and takes up to one year for construction, this project was completed with a funding of Rs 32.5 crore in six months. The construction of this innovative check dam began in March 2019 and the structure was completed by August 2019, before the onset of monsoon.
Dr R Sundaravadivelu, Institute Chair Professor, Department of Ocean Engineering, IIT Madras, who lead the efforts from IIT Madras, said, “This unique project was implemented successfully using the diaphragm wall as a deep foundation for check dam, ensuring safety and arresting seawater intrusion. The funding of MAPS, encouragement of the District Collector and cooperation of PWD is greatly acknowledged.”
Palar River supplies drinking water to Chennai, Vellore and Kanchipuram. The impact of climate change in recent years has affected the river, which has resulted in a water crisis in the region. To overcome the water scarcity and prevent the seawater intrusion, it was proposed to construct a check dam across Palar River (at Vayalur, tail end of the river).
The main function of the check dam was to obstruct the flow of water and create a ponding to conserve the rainwater that allows infiltration to the Aquifer beneath to improve the groundwater levels.
At this juncture, Tamil Nadu Public Works Department (PWD) approached Dr Sundaravadivelu to evolve an innovative design concept with faster construction technology at a lesser cost. While planning of the concept for the Check dam over conventional concept it was taken into consideration that the seawater intrusion into the freshwater aquifer is arrested, a subsurface reservoir in the upstream of the check dam can be created, the piping and quicksand condition is arrested. The dam was designed in such a way so that it allows the surplus water flow with minimum velocity i.e., Non-Scouring Velocity and to prevent scour and notch of the soil particles at the river bed.

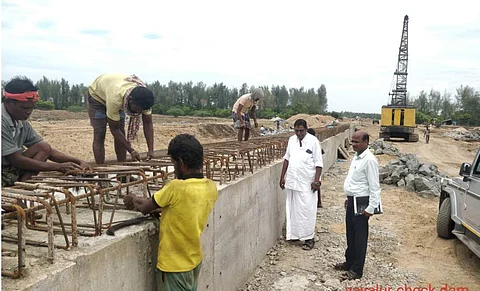

Considering the above points, a deep dyke like structure with 1.2 km length across the river having gentle concrete slope was planned with the stone apron on the upstream and downstream. The deep dyke using diaphragm wall was faster to construct and arrest seawater intrusion.
